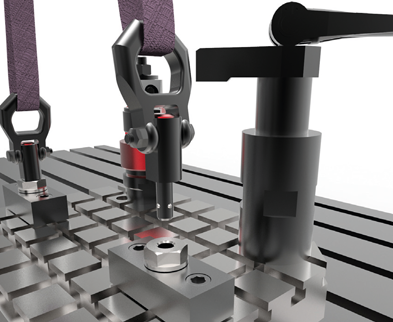

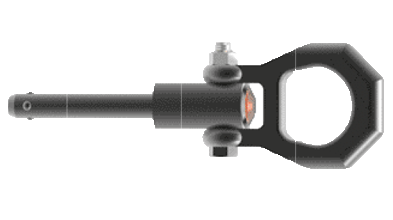

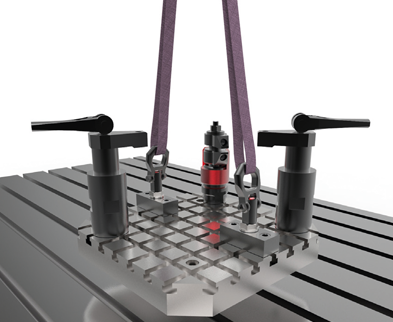

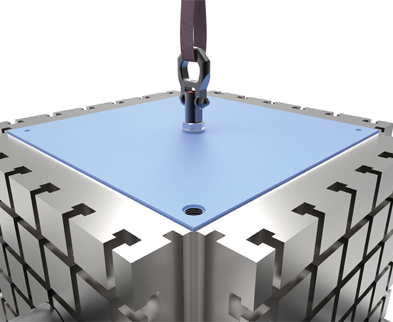

These threaded lifting pins are a reliable part for lifting and holding individual loads. Other lifting parts such as eye bolts need to be screwed into the component and removed again. This is often time-consuming. Other solutions require that you incorporate separate bored locating holes and this is not always possible for some components. Wixroyd's threaded lifting pins have an aluminium button (below the movable shackle) which the user can push to release the pins for easy installation. In this way, you can utilise threads that already exist, streamlining the process, making these lifting pins the ideal solution for inserting and removing the lifting pin quickly and easily.
To prevent the button from being depressed and releasing the threaded lifting pin at the wrong moment, the shackle is equipped with a prevention bar. The maximum lifting capacity can range up to 840 Kg depending on the model. The exceptional lifting capacity of these threaded lifting pins has been certified by TÜV Süd, and they are CE-compliant.
The threaded lifting pins are available in two materials:
Steel, heat-treated with manganese phosphate
Precipitation hardened stainless steel (1.4542)
Both versions are protected against corrosion and heat-resistant up to 250°C. The stainless steel lifting pin is weather-resistant and therefore exceptionally suited to outdoor use. From stock, these lifting pins are available in thread sizes M10, M12 and M16. Each is produced in accordance with European safety and environmental standards and is certified as such with the CE mark.
You can continue to the product pages of Wixroyd's threaded lifting pins by clicking on one of the tiles above. If you wish you can also give us a call and speak to one of our product specialists who can advise you about the right choice of part for your application, and address any other queries you may have. Call us on 0333 207 4497.
Do you find threaded lifting shackles time consuming to install?
Frustrated with numerous lifting threads in the machine shop?
Looking for a simple but reliable alternative?
Then standardise your machine shop lifting to our self-locking lifting pins - CE marked and TUV certified.
Please follow these instructions carefully
Ensure all lifting pins are CE marked.
Ensure they are handled by qualified personnel.
Refer to the operating instructions particularly with regards to product selection, any possibility of the load swivelling, the effect of lifting angles on the load capacity (see relevant tables), etc.
Never allow any personnel underneath a suspended load.
Always heed the load rating of the lifting pins.
Always perform a visual inspection of the lifting pins prior to use. Checking for any damage to thread and/or swivelling system. Check for wear or corrosion, signs of stress or bending. Check CE mark and load rating.
Ensure a yearly full service inspection is performed.
Always ensure the full bottom face of the lifting pins is in contact with a smooth, square surface.
Before each lift ensure the correct orientation of the shackle in the lift direction.
