One-Touch Fasteners Cam Locking from Wixroyd
What is...

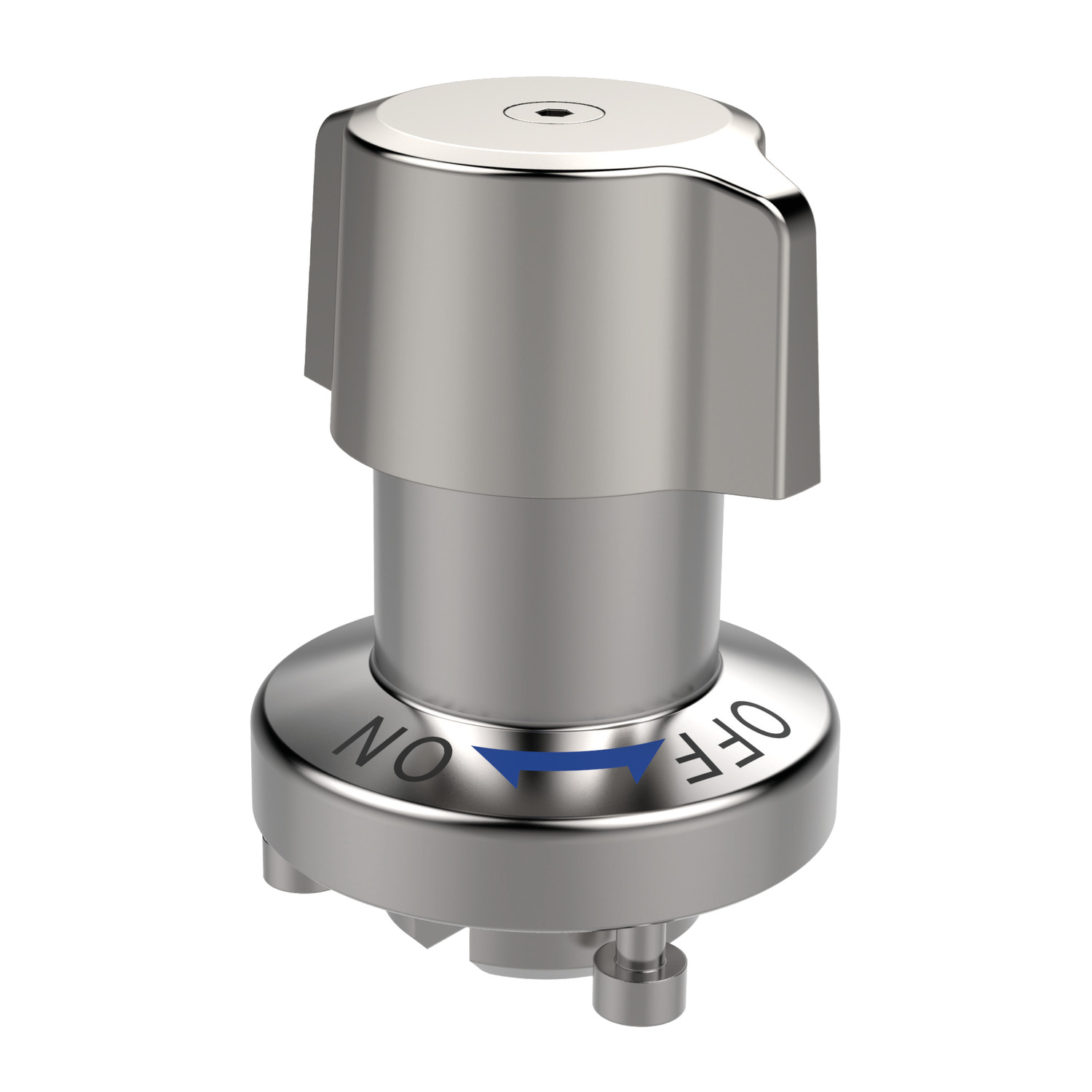

Our Cam Locking One-Touch Fasteners allow quick and recurring change overs of tooling setups through an easy on/off switch being turned 45°. This makes them ideal for use in bottling processes, machine covers or the changing of cogs and drive belts in an assembly.
Wixroyd’s range of Cam Locking One-Touch Fasteners are available in stainless steel with polyamide knobs where applicable. Locating bushes are also available for use on soft metals such as aluminium where receiving surfaces may wear. We also offer free CAD files for you to download on all our cam lock one-touch fasteners to save your time.
The pin follows the receptacle cam profile to lock and positively clamp two surfaces together.
Associated Products
Handle styles include button and quarter turn for quick fasteneing. Visual on/off feature available with quarter turn handle.
Single Acting Plastic Handle Ball Lock Pins in four different colours (orange, bleu, grey and black) to co-ordinate with your required application colour scheme. For repeated connection of parts, with high sheer forces.
Features

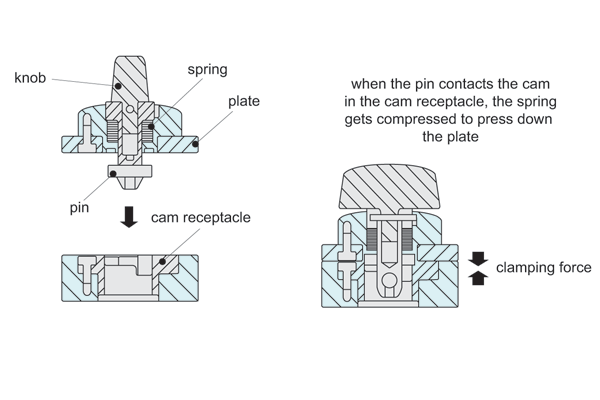

Operating Principle
- The shank retracts at the unclamping position to enable operations without interference with the base panel.
- When the pin contacts along the cam surface in the cam receptacle, the spring gets compressed to press down the panel.

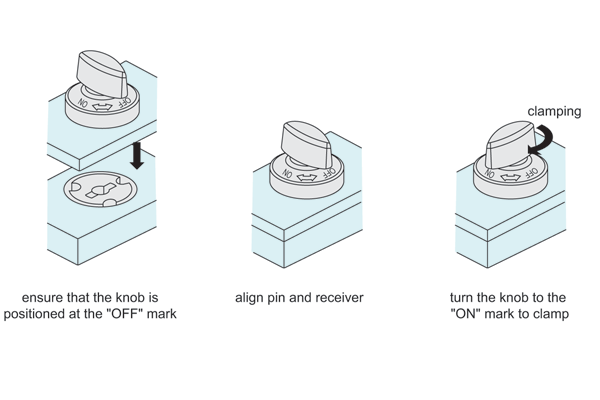

Operation Instructions
- Ensure that the knob is positioned at the "OFF" mark and the pin is retracted.
- Locate the cam receptacle directly under the fastener. Insert retracted pin by pressing the knob down.
- Turn the knob to the "ON" mark for clamping. The knob clicks when clamped. Turning the knob to the "OFF" position, the pin returns automatically to the unclamping position.
Applications
Changes of fixture plates
Lock for doors
Adjustment of workpiece guides
