Precision Locating & Mounting System From Wixroyd
What is...
For fast and accurate set-ups, Wixroyds precision and locating system provides the answer, and enables significant improvements in; machining productivity, through put rates, quality and reduced operating costs. Ideal for fixtures, workholding, welding and assembly applications.

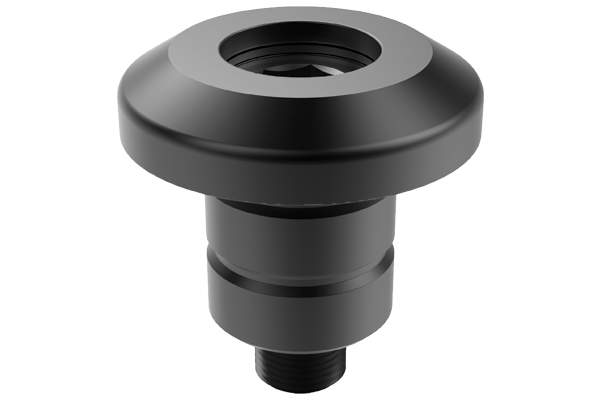

Easy locating unit. It installs and locks in seconds. Heat treated steel. Self-extracting mechanism eliminates the need for prying.

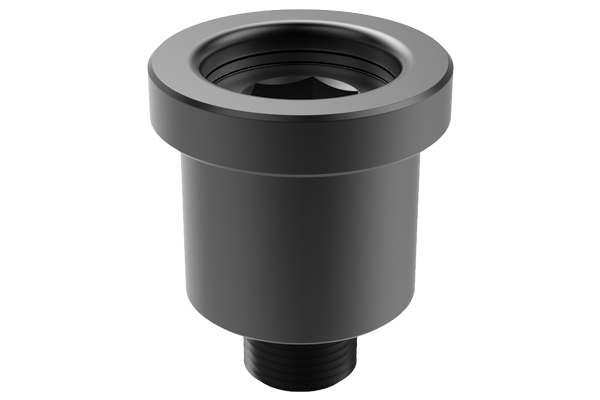

Easy locating unit. It installs and locks in seconds. Heat treated steel. Self-extracting mechanism eliminates the need for prying.
Combined with the 12095 locator unit system, this will create the highest possible machining accuracy.
Combined with the 12095 locator unit system, this will create the highest possible machining accuracy.

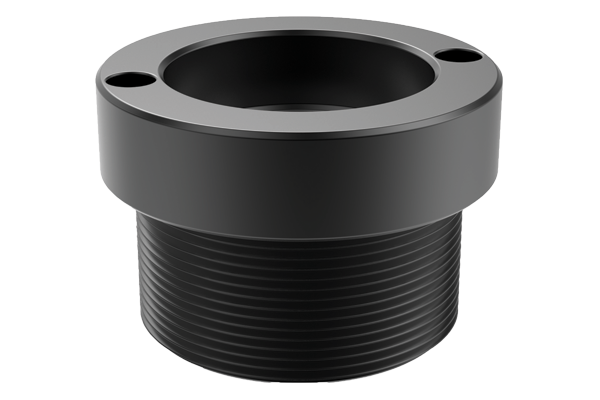

The receiver is interchangeable with competitive face mount designs, providing an advanced retrofit option.

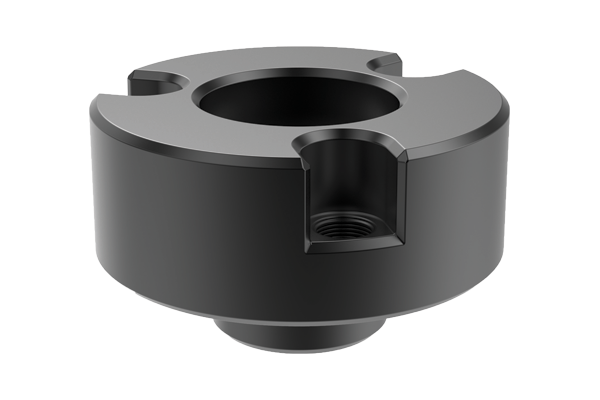

Compact face mount design optimizes subplate space, is easier to install, stronger and less expensive than standard face mount receivers.
Associated Product
Positioning clamping pins for quick clamping and fastening. Available in heat treated steel (tempered and blackened) or precipitation hardened stainless steel.
Press fit expansion pin made from stainless steel. Provides discrete workholding to allow full tool access on the work surface without external clamping interference.
Applications

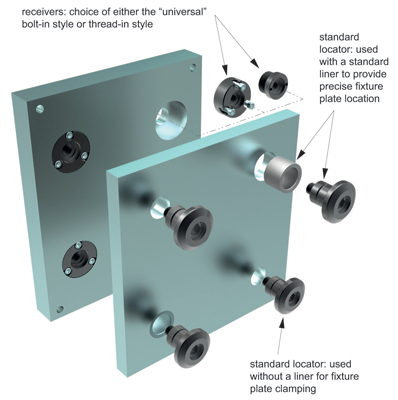

- Place fixture plate over sub-plate or machine table containing the Wixroyd receivers.
- Insert two Wixroyd precision locators through holes lined with hardened bushings and into the receivers.
- Insert two remaining locators into unlined holes and tighten to draw each locator to the desired torque.
- Total time required to unload existing fixture plates and load a new fixture plate is typically under 2 minutes.
Features
System features
- Self-extracting, unique design enables easy and quick "self-extract" from tooling, fixturing etc. There is no binding or other issues to delay removal time or compromise accuracy of the locking system.
- Precise locating, repeatability of +/- 0.0004"
- High clamping strength - over 45,000 lbs
- Easy Installation, easily installed in a wide range of applications using standard tooling and machining practices.

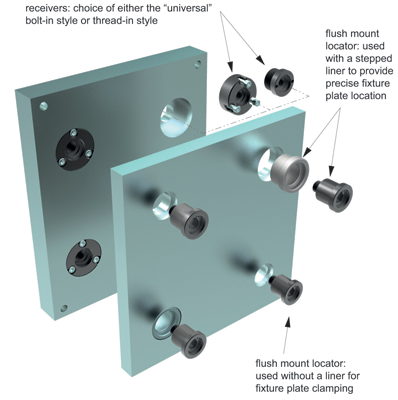

- Compact, requires minimal space in tooling and fixture applications. Both standard and compact/flush mounting options.
- Can be retro-fitted with existing competitive ball lock type systems.
Product range
12095.W0131 to .W0504 -
Locator unit - standard
12095.W2131 to .W2504 -
Locator unit - compact
12097.W0131 to.W0501 -
Face mount receivers
- standard
12097.W2131 to .W2501 -
Face mount compact
receivers - compact
