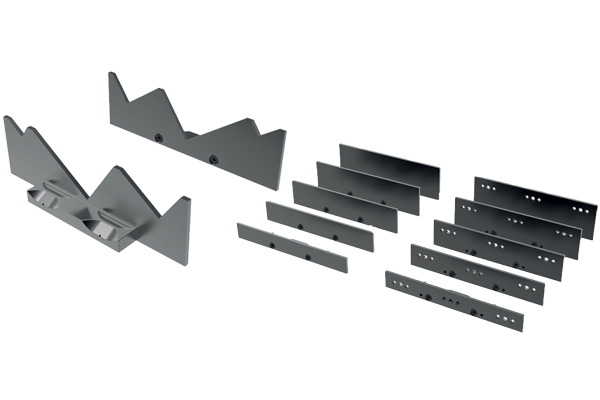

AccuSnap Jaws and Parallels for use on SnapLock Jaw System for ReLock Vices - 19810 - 19838
Installation
- Fast, accurate and versatile.
- Reduces set-up time drastically.
- ±0.0002” repeatability.
- Adaptable to most vice systems.
Step 1:
Before mounting AccuSnap Master Jaws, thoroughly inspect, clean and remove any burrs or chips fom the mounting surface.

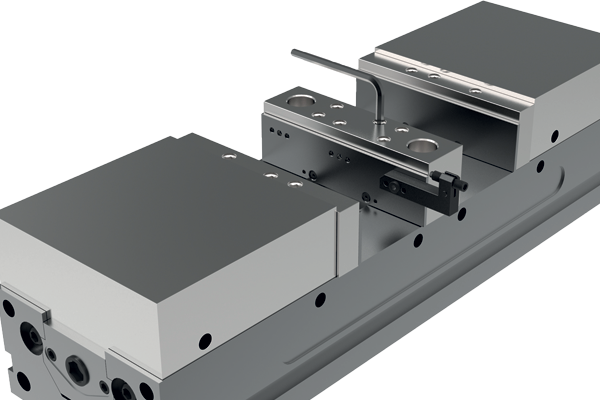

Simply attach the AccuSnap Master Jaws to the carrier jaw system using the industry standard bolt system.
Step 2:
Snap in the parallels or soft jaws that you require for your set-up and begin machining. Two lock screws are provided for extra holding assurance, but are not necessary to hold parallels in place. Do not overtighten lock screws.
Step 3:
When finished with your job, unlock parallels (if needed) and turn the kick out screw to eject the jaw or parallel.
You are ready to repeat the process for your next job.
