CMM Fixturing modular approach, flexible system - 19300 - 19370
What is...
Wixroyd’s CMM fixturing system is designed for easy assembly and high repeatability, eliminating the need to build dedicated fixtures. The system offers a highly accurate and flexible solution of holding parts while probing.
Applications
Flexible
A variety of component parts as well as kits are available, to enable setup of fixtures in minutes.
Features
- Aluminium base plates – hole based system with alpha numeric labelling for easy set-up and recording of fixtures.

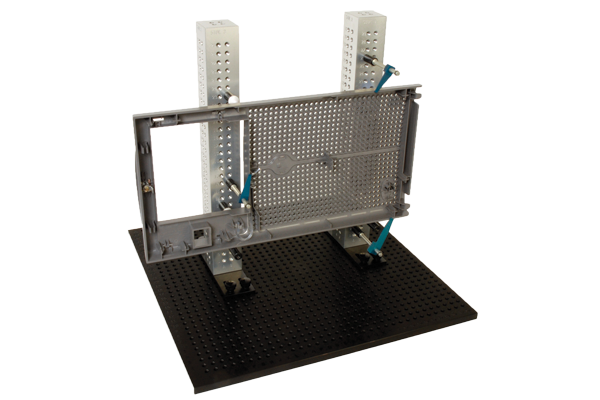

- Fixture towers – ideal for fixturing of large vertical components.
- Soft-touch clamps – non marking clamps providing the ideal force for holding parts during SMM probing.
- Locating components – rest pads, vee pads for cylindrical parts, pin rests etc.
