Wixroyd Glass Door Hinges
The Wixroyd range of Glass Door Hinges are intended for the mounting of smaller doors and panels on cabinets and enclosures. Typically, their maximum load capacity is 4 Kg per hinge pair. Some of our larger hinges have a capacity of upto 12-15 Kg/pair.
Inset-Type Hinges
Inset Hinges are mounted on the inside of the cabinet frame and are used for hanging doors/panels flush to the frame of the cabinet. Requires mounting holes to be cut into the glass.
| Wixroyd product no. | Max. glass thickness (mm) | Max. load capacity per pair (Kg) | Max. door/panel size mm (subj. to max. load) | Requires mounting holes cut in glass |

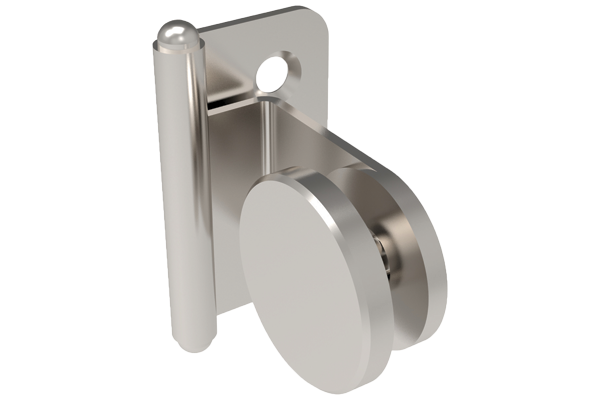

| T2000 | 4 to 6 | 4 | - | Yes |
| T2220 | 5 to 8 | 15 | 600 x 700 | Yes |
| T2300 | 5 to 8 | 12 | 650 x 700 | Yes |
Overlay Hinges
Overlay Hinges are mounted to the inside of the cabinet frame, with the complete hinge profile resting on the cabinet frame.
The door/panel is hung proud of the cabinet frame. Requires mounting holes to be cut into the glass.
| Wixroyd product no. | Max. glass thickness (mm) | Max. load capacity per pair (Kg) | Max. door/panel size mm (subj. to max. load) | Requires mounting holes cut in glass |

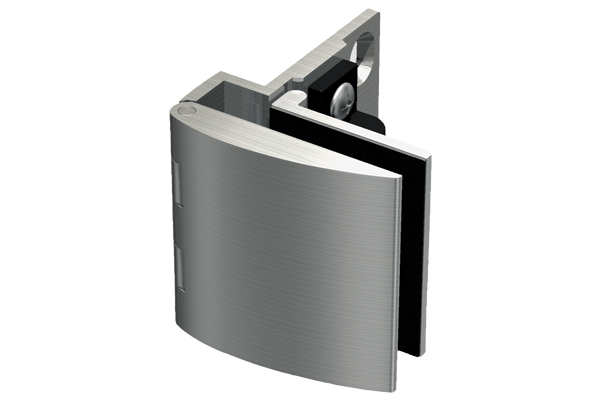

| T2240 | 5 to 8 | 15 | 600 x 700 | Yes |

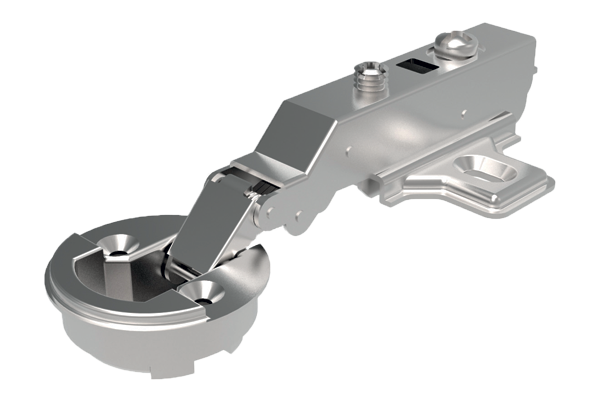

| T2106 | 4 to 6 | 8 | 500 x 600 | Yes |
Half-overlay Hinges
Half-overlay Hinges are mounted to the inside of the cabinet frame, with half of the hinge profile resting on the cabinet frame. The door/panel is hung proud of the cabinet frame. Requires mounting holes to be cut into the glass.
| Wixroyd product no. | Max. glass thickness (mm) | Max. load capacity per pair (Kg) | Max. door/panel size mm (subj. to max. load) | Requires mounting holes cut in glass |
| T2020 | 4 to 6 | 4 | - | Yes |

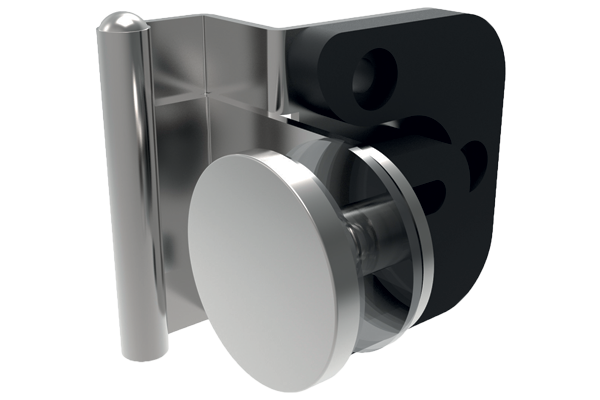

| T2040 | 4 to 6 | 4 | 450 x 700 | Yes |
| T2104 | 4 to 6 | 8 | 500 x 600 | Yes |
Glass-to-Glass Hinges
To hinge glass-to-glass, use these particular hinges as they provide non-flush hanging of glass to glass. Requires mounting holes to be cut into the glass.
| Wixroyd product no. | Max. glass thickness (mm) | Max. load capacity per pair (Kg) | Max. door/panel size mm (subj. to max. load) | Requires mounting holes cut in glass |
| T2200 | 5 to 8 | 15 | 600 x 700 | Yes |
Set Screw Mount Hinges
These, Simple to Install Glass Hinges, use set screws to clamp the glass; no cutting of the glass is required.
| Wixroyd product no. | Max. glass thickness (mm) | Max. load capacity per pair (Kg) | Max. door/panel size mm (subj. to max. load) | Requires mounting holes cut in glass |

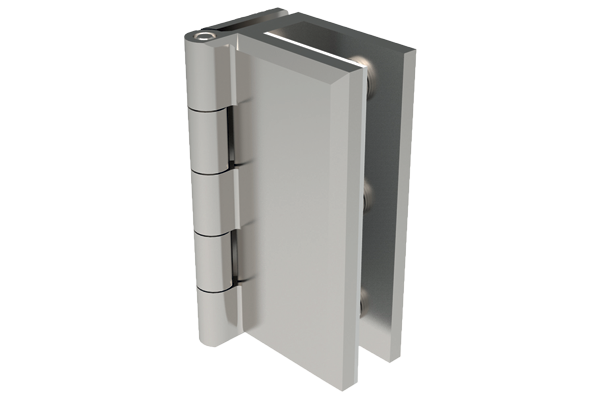

| T2260 | 4 to 8 | - | 450 x 1300 | No |
| T2280 | 4 to 8 | - | 400 x 600 | No |
