Side-Loc Xpansion Clamp Machinable 12052

Features

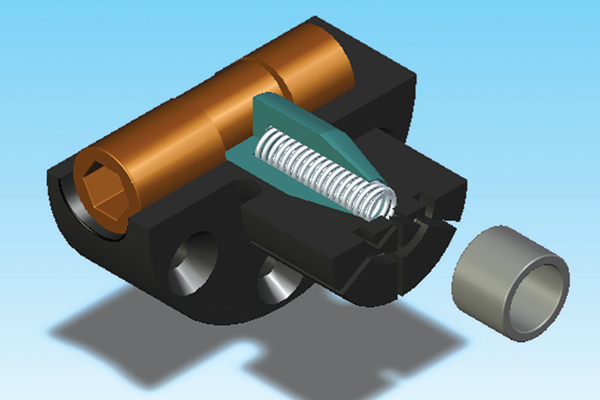

Wixroyd introduces a new style clamp to its range of ID-Xpansion Clamps: the Side-Loc Xpansion Clamp. Actuated by turning a socket head cam shaft on the side, it is ideal for clamping on blind internal diameters. The locking ring provides an accurate preset diameter and rigidity for machining. Like our original ID Xpansion Clamps, the Side-Loc Xpansion Clamp has the dead length feature, which is critical for close tolerance dimensions.

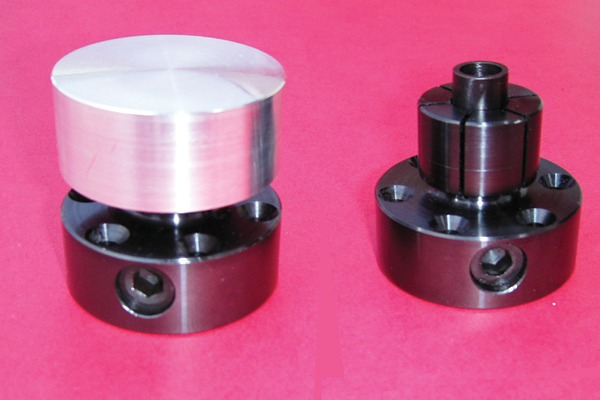

Designed in two styles, one for milling operations and one for lathe applications; the mill Side-Loc Xpansion Clamp can be machined from 28.4 to 18mm and the lathe version from 53 to 18mm.
