One-Touch Fastener - Cam Locking Retract 33946 - 33947
What is...
Features
Operating Principle
- The shank retracts at the unclamping position to enable operations without interference with the base panel.
- When the pin contacts along the cam surface in the cam receptacle, the spring gets compressed to press down the panel.

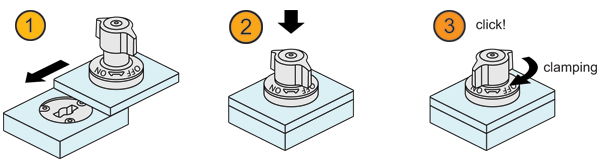

Operation Instructions
- Ensure that the knob is positioned at the "OFF" mark and the pin is retracted.
- Locate the cam receptacle directly under the fastener. Insert retracted pin by pressing the knob down.
- Turn the knob to the "ON" mark for clamping. The knob clicks when clamped. Turning the knob to the "OFF" position, the pin returns automatically to the unclamping position.

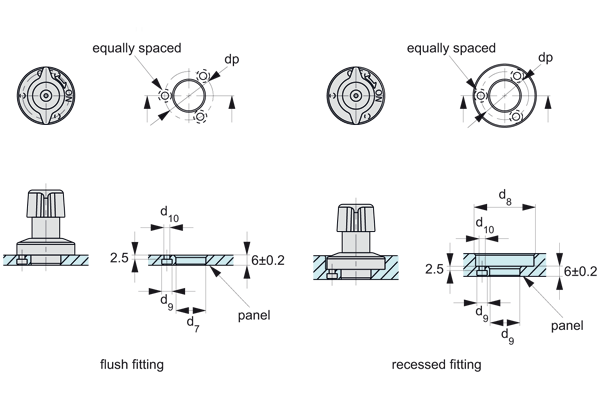

Installation
Dimensions

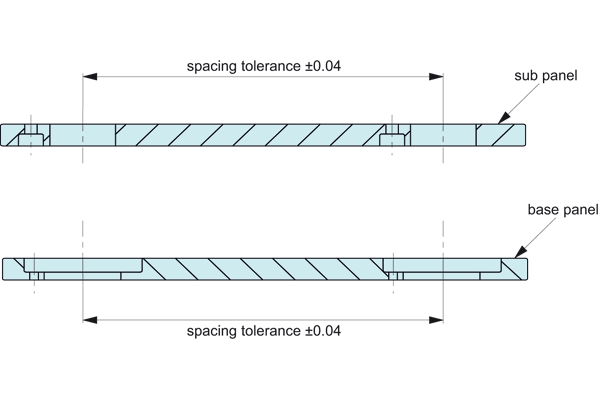

Best Practice
Spacing tolerance on both the sub panel and the base plate should be ±0.04.

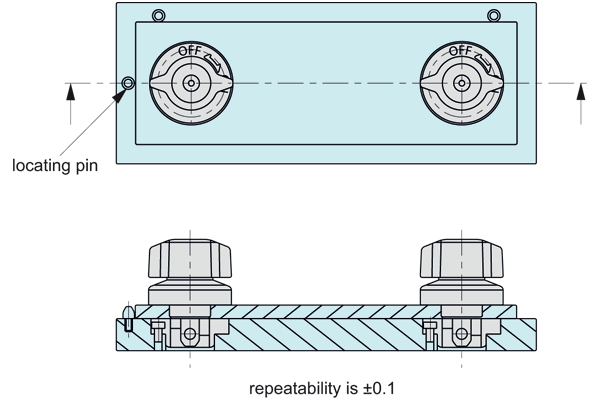

Repeatability
For highly accurate locating, use locating pins 36340 or 36341. Repeatability of ±0.1 is achievable.
Applications

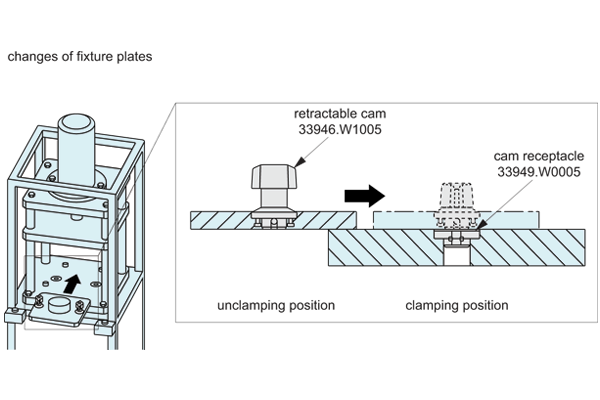

Changes of fixture plates

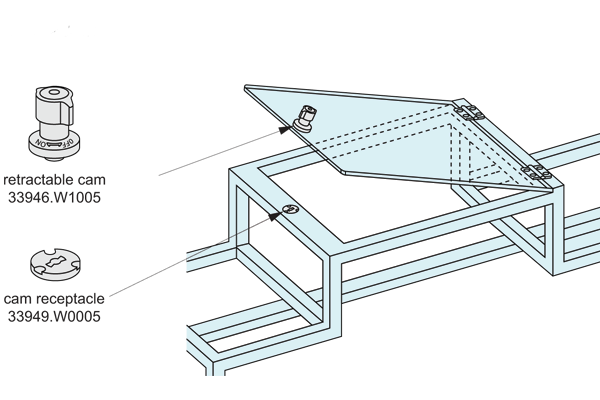

Lock for doors

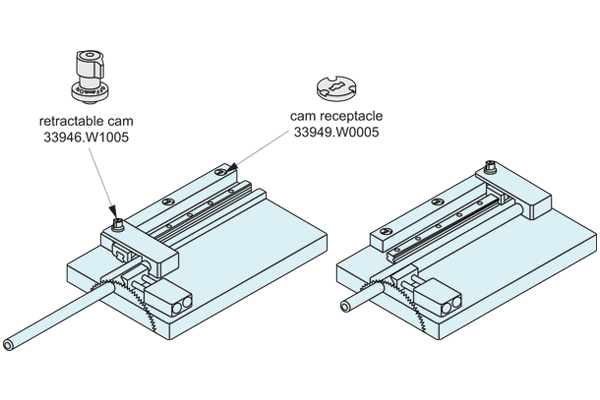

Adjustment of workpiece guides
