One-Touch Fastener - Pull Clamping 33964
What is...
Features
Operating Principle
- The tapered pin expanded by the wedge pushes out against the edge of the hole on the base panel, and the two panels are clamped.
- Just a tapped hole and a through hole are required.
Operating Instructions
- While depressing the actuation button, align the pin in the receiving hole.
- Once pin is aligned and seated in the receiving hole, release button. Pin will retract, forcing clamping wedges to spread and pull the two panels together to securely fasten.
- To release, reverse steps describe above.
Installation
Dimensions
- Screw hole holding clamp into the panel until the end of threaded part comes out of the panel.
- Insert the clamp pushing the button.
- Adjust the clamp until the both panels get contracted and then lock the clamp with the nut.

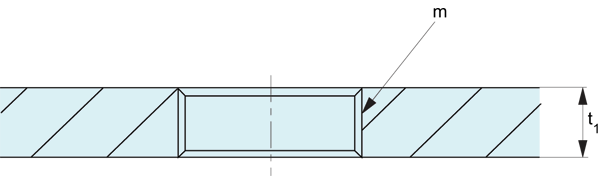

Mounting hole on panel

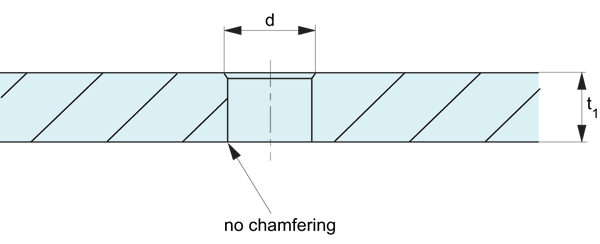

Mounting hole on base panel
Use hard metals such as stainless steels for the base panel.
Machining Accuracy
Spacing tolerance on both the sub panel and the base panel should be ±0.1.

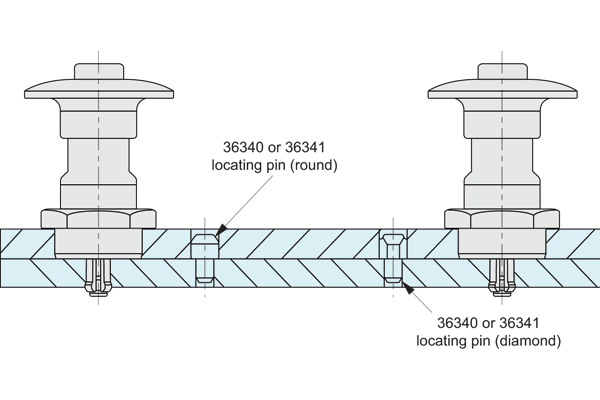

Repeatability
For highly accurate locating, use locating pins 36340 or 36341. Repeatability of ±0.25
is achievable.

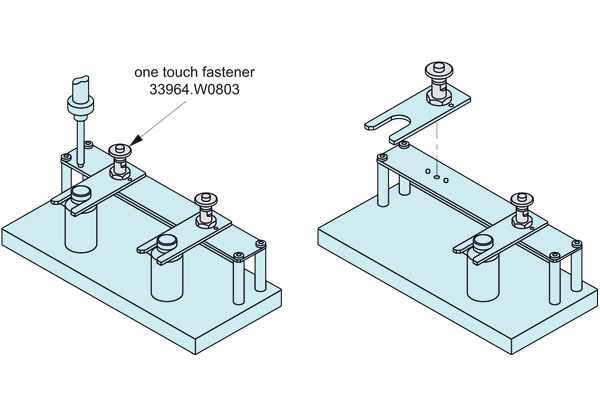

Applications
Changes of holder panel
