Positioning Clamping Pins 12090
What is...
General Guidance

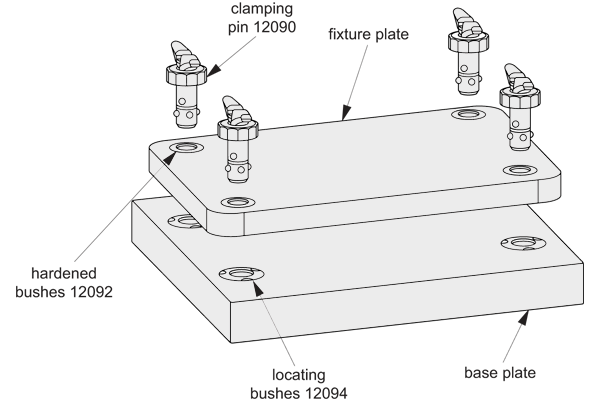

By tightening the clamping screws, the Positioning Clamping Pin is centred and clamped with four balls in the locating bush. The clamping screw can be operated manually via a removable handle or via a hex. key.
Advantages
- Advantages of initial spring tension:
- Abrasion resistant.
- Clamping ball and location hole are protected from overload.
- No seizing of the pin through overloading.
- Reduces vibration during machining.
- Eliminates unintentional unlocking of the system (e.g. due to system vibration).
- High repeatability of ±0.03mm.
- Simple installing/uninstalling using spanner faces and knurling.
- Low construction height.
- Operation via hex. key or optional handle.
