Quick Power Clamp - Powerful Clamping
What is...
10585
Features
Robust Quick Action Clamp, to heights of 180mm with stepless adjustment of 63mm, providing clamping forces up to 16 or 25kN. Ideal where quick and easy clamping is required. Clamp designed to slide in and out of clamping area for easy loading and unloading of components.
- Reduce set-up times.
- Advantages.
- Quicker component loading/unloading.
- Excellent value.
- Robust design.
- Clamping height from 0 to 180mm.
- Adjustable clamping range of 63mm.
- High clamping force up to 25kN.
- Suitable for T-slots 14 to 28 and grid plates M18, M20, or M24.
Installation

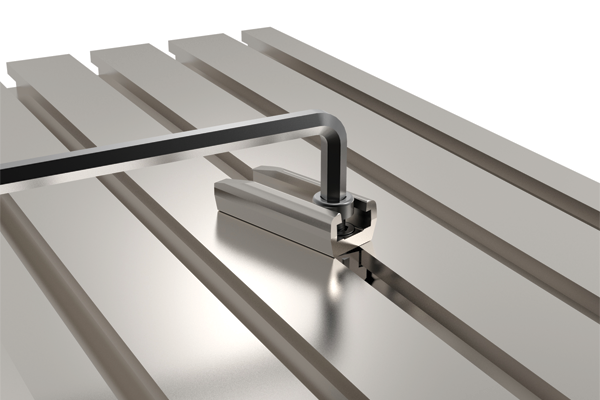

1. Fix base to machine bed.

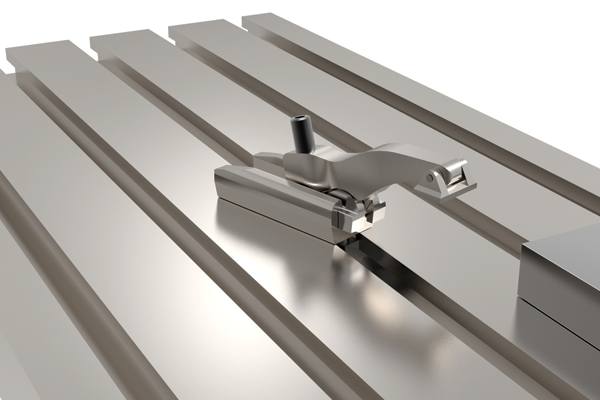

2. Side clamp onto base.

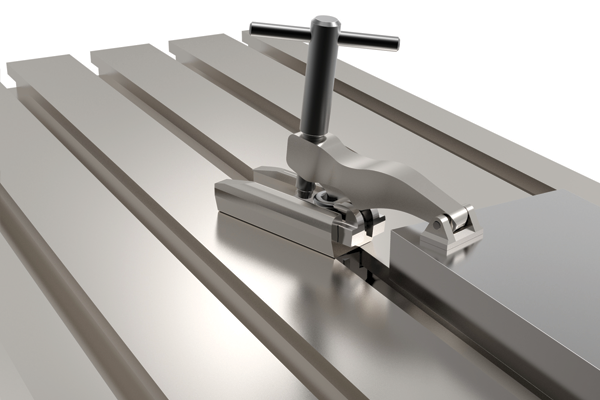

3. Clamp component.
