Self Centering Internal Clamps - 12061 - 12072
What is...

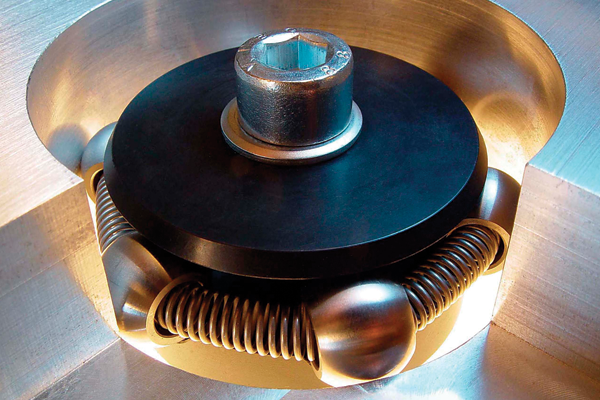

The Internal Centering Clamp provides autocentric chucking inside both round and square holes, at the simple turn of a hexagon screw. Precise self-centering is achieved through the expansion of the ring of balls which, during clamping, are pressed outward across a precision cone. As the outer diameter of the clamp changes, the balls transmit force between its body and the bore. The Clamps are used in machining and welding fixtures, product assemblies and transfer units.
General Guidance
Advantages
- Easy to use.
- Precise self-centering and downhold clamping, minimising tolerance errors.
- 3 or 6 points of clamping for maximum stability.
- Clamping on uneven surfaces, such as casts and forgings.
- Low height clamping element.
- Bore sizes 11 to 102mm.
- Repeatable positioning accuracy ±0,025 and rotational accuracy ±0,025.
- Easily actuated by the turn of a screw.
- Clamping of workpieces with perforated walls without distortion.
- Actuation from above or below.
Centering
Features
Actuation models
Manual from above
Manual, hydraulic or pneumatic from below
