Wixroyd homeWixroyd Spring Loaded Lid Stay N0900 Technical Page

Wixroyd Spring Loaded Lid Stay - N0900

Installation

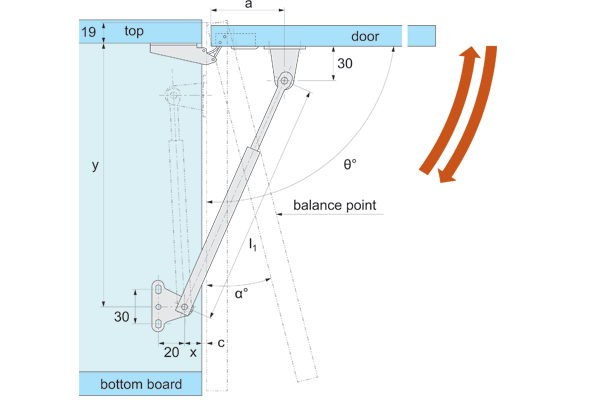

Mounting example 1: Wooden lid

Order numberMax lid weight (kg)Lid opening (qo)- (ao)l1axy
N0900.AC00102.5
2.7
3.0		90
85
75		17
15
14		222
222
222		68
85
85		20
20
20		233
233
251
N0900.AC00203.1
3.3
3.8		90
85
75		14
12
11		335
335
335		105
115
130		20
20
20		346
356
375

Max lid weight based on lid heights of 350mm for N0900.AC0010 and 500mm for N0900.AC0020.

Mounting example 2: Plastic lid

Order numberMax lid weight (kg)Lid opening (0o)- (ao)l1axy
N0900.AC00202.5
3.0
3.3		90
90
85		0.5
14
12		335
335
335		295
295
295		45
45
45		38
38
44
N0900.AC00302.5
3.0
4.0
4.3		110
90
90
80		8.0
3.5
4.0
7.5		380
380
380
380		330
335
320
335		40
55
41
56		36
44
59
60
