Steel eye bolts
18863 Steel Male Lifting Eye Bolts
metric sizes, material: Steel
Order No.
18863.W0042
Thread
Coarse

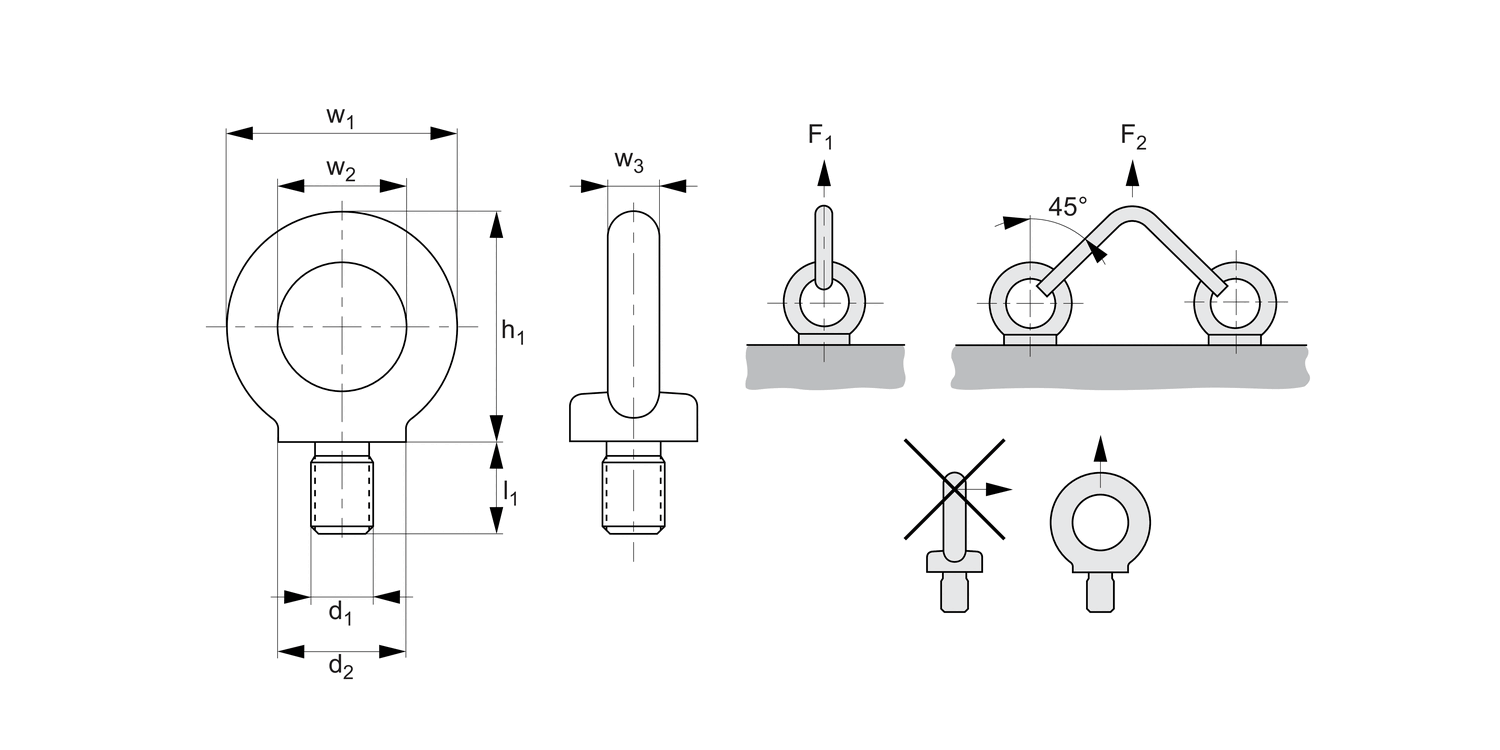

d1
M 42
d2
85
w1
144
l1
63.0
h1
147
w2
80
w3
32
F1
max.
kg
6300
F2
max.
kg
4500
Weight
kg
4.03
£ 122.83 per unit (click for quantity discounts)
Ready to despatch 8
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 122.83 | 0% |
| 20-49 | £ 104.41 | 15% |
| 50-99 | £ 92.12 | 25% |
| 100-199 | £ 79.84 | 35% |
| 200-499 | £ 73.70 | 40% |
| 500+ | £ 61.42 | 50% |
Technical & Application
Material
Forged steel (C15E) annealed and zinc plated. Contact face machined.
CE marked.
Technical Notes
To DIN 580.
When using lifting eye bolts it is critical to ensure that the face is in firm contact with the mating surface.
These lifting bolts are generally installed and remain on a piece of equipment for the purpose of transporting them. They are not for repeated lifting use - if this is required our swivelling lifting bolt range should be used.
Tips
Maximum load values are only applicable when the thread is fully screwed in, and the material it is being used in is as least as strong as the that of the bolt.
Temperature range -20°C to +200°C.
F1 and F2 values given are for steel and cast iron components.
Important Notes
Not to be used at lift angles of greater than 45° or with swivelling loads.
Supplied with certificate and operating instructions.
